This program is very simple to use and produces a report with an audiogram and a breakdown of the percentage loss per frequency.

It comes with a setup menu to select parameters like:
   Graph line colour
   Background colour
   Normal values
   Print method
   etc..

Saving data
Setup data and Client Data can be saved to disk and loaded later on for review.

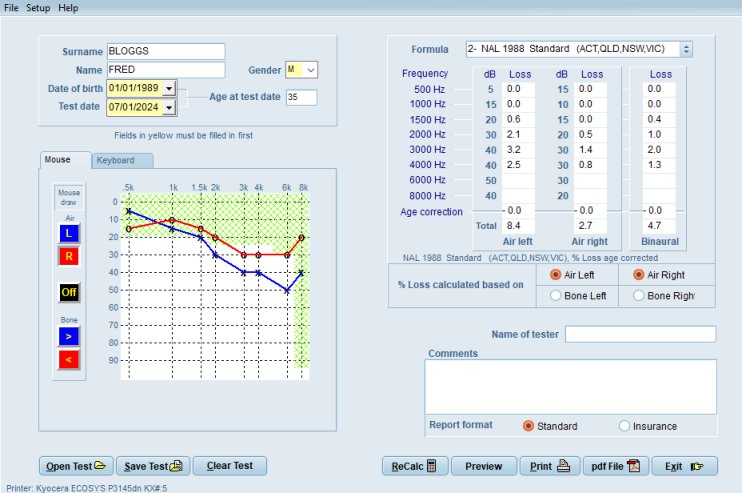

Data entry
Data is entered in the window displayed below. Air and Bone thresholds can be entered. Calculations can be based on Air or Bone. The Bone conduction symbols can be changed and the Bone conduction point can be displayed as joined if required.


Go top


Calculations
The percentage loss of hearing according is calculated according to Australian based formulae.}Three formulae are supported all based on the NAL table & formula.
     1- Old NAL (1976 tables)
     2- Current NAL (1988 tables & formula NSW, VIC, QLD)
     3- Extended NAL (Based on the current tables + 6K and 8K) as used in WA

The thresholds can be entered with the mouse or the keyboard

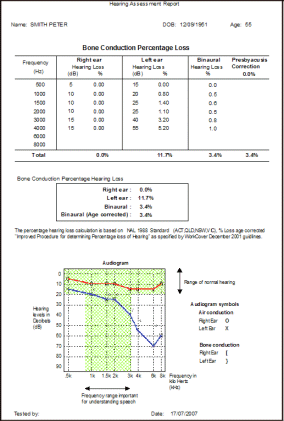

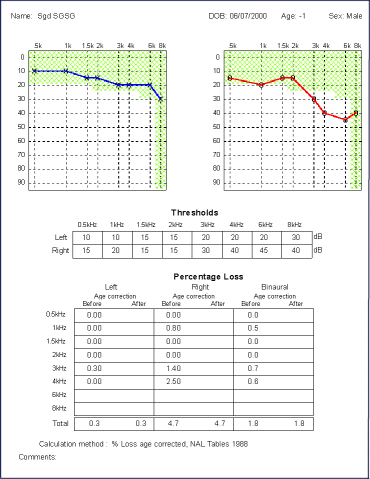

Report
2 report types are available

The report can be previewed, printed or saved directly as a pdf file.

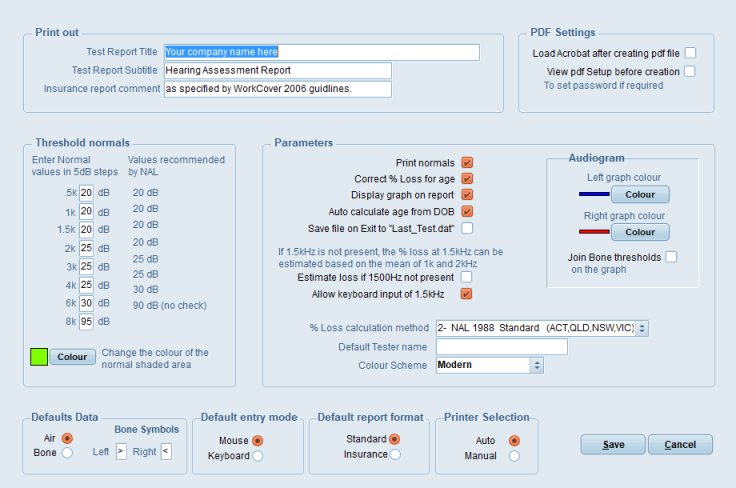

Configuration
The program has 2 configuration menu options, one for the display, the other for the printout.

Requirements

The software will work on any Windows operating system from Win95 to teh latest Windows Vista

Availability
This software package is available now. It comes on a CD with on-line documentation.

Technical Support
Free technical support by telephone is available for a period of six months after purchase. This include free updates if available during this period.

Pricing
Payment modality is within 14 days, we accept company cheques, Credit cards (Visa & Mastercard only)

All prices include GST
